Part # 68049181AA

I believe its the Electric Plate with the input and output speed sensors. Need one ASAP if anyone has one or can point me in the right direction. Car is currently down and not able to drive.

Thanks.

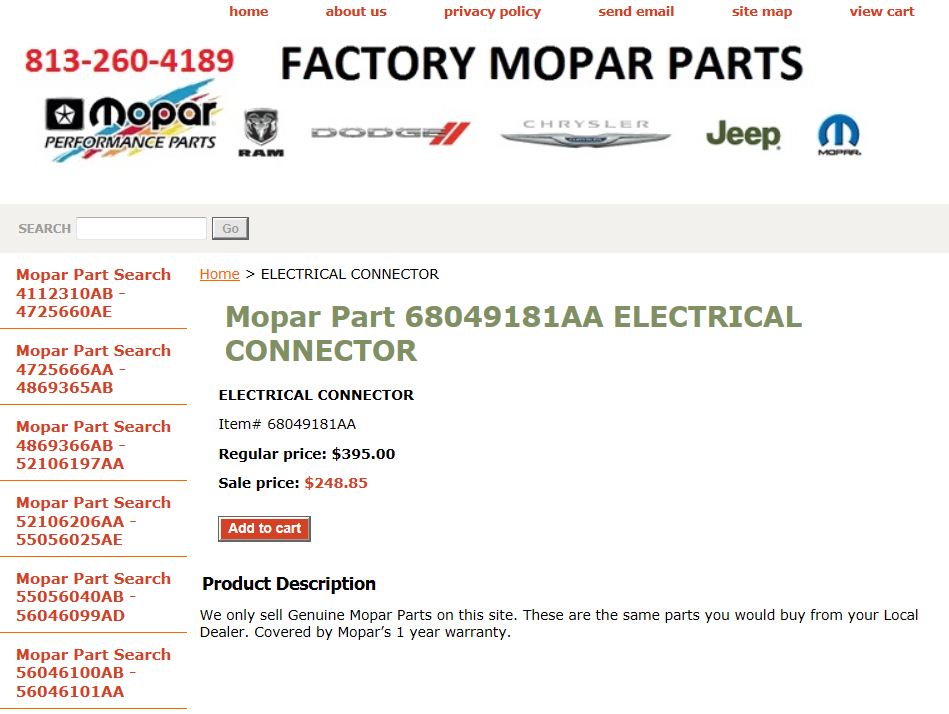

Mopar Part 68049181AA ELECTRICAL CONNECTOR $248


http://www.mmaautoparts.com/68049181aa.html $233


http://dodge-wholesale.com/catalog/p...ucts_id=276927 $223



Ant, thanks for the help.

Do u know if they have it at car-parts.com?

I couldn't find it.



The description Chrysler uses for the part is "electrical connector". I've tried that and looked for anything related to "valve" and I don't see it. Does it go by another name? If you do a search on car-part.com for "electrical part misc and wiring", lots of items come up. You could then call the individual salvage yards and ask them for the part.



Here's the best deal I could find : GENUINE Mercedes Transmission Valve Body Plate Electric | eBay



Thanks Ant.

Sparkie, Is it for sure the right one? Says the part is not fitted to the crossfire and I dont see the same part #. Is the part # just different?

Thanks.



Yo Anthony,

You seem to be an expert on finding parts, can you find the following?
05161796AA
I am looking for the motor for the rear N/A spoiler..

Hope you have a nice sunday.



Actually part # 05161797AA is the kit that includes the motor, see below:

Motor Kit, Spoiler

Kit Contains:
1 - Motor Mount
1 - Motor
4 - Damper
2 - Collar
1 - Gear Wheel
4 - Nut
2 - Lock Washer
2 - Flanged Bearing (MFM-0912-08)
1 - Flanged Bearing (GFM-1517-04)
2 - Cable Tie
2 - Micro Switch Assy
.2 - Screw
2 - Rubber Support
2 - Bracket
1 - Connector
1 - Screw


Your part # (05161796AA) is for:

Drive Shaft Kit, Spoiler

Kit Contains:
1 - Left Drive Shaft
1 - Right Drive Shaft
2 - Locking Pin


I'll do some searching, but I think this is going to be an item you'll have to call a salvage yard directly about if you want it used.

Here's a copy of a TSB relating to the spoiler, which is where I got the part # info. It also includes in-depth instructions on removing and servicing the spoiler.

http://www.crossfire-garage.fr/docum...2004-10-05.pdf



thanks for everything bud! I did buy one second hand and it was unfortunately already toast.. the part# was a typo .. I did have the pdf but I am having dificulties finding the part on the web and in the US. sorry about the thread hijacking.



Any help? ...........



onehundredeighty.....do you have any way to confirm the part number for the SRT6 Transmission Conductor plate???
I found MB # 1402700861 for the 722.6 transmission but I cannot confirm the part is the equivalent to the Chrysler # 68049181AA

Please help??



I have only found that the part is superceded by #140 270 11 61.
$177 from this company. http://www.rmeuropean.com/search.asp...=140-270-08-61



it's the same transmission...but can't confirm the part would work...but I bet it does....



Thanks.

Here is another one :

Mercedes Benz Transmission Conductor Plate 1402701161 - Volkstoy Motorsports



If you are taking the tranny apart you may want to see this first.
Of course its cleaner with no oil in it and upside down on the bench.
YouTube - ‪722.6, NAG1, W5A580, Tiptronic Valve Body Installation‬‏



Great vid Dave. Shows everything including the leaky connector replacement as well as the filter change.
Thanks!!!



So u guys think that #140 270 11 61 would work in my SRT6?

Great price at $162.



OK - about this plate......
I have a minor "semi hard shifting" issue with my tranny (80k miles).
I replaced the fluid with MB spec 236.10, but still notice the shifting issue. It's not totally anoying - but its also not typical mercedes smoothness.

I watched the vid - amaxing how easy and casual some people make it look. I guess on the bench versus updside down under the car is much easier.
Though it does have a different filter and pan than on my SLK32.

For the sake of $200 - you reckon its worth repalcing?
