Show us your Engine bay
<--- Huge Horsepower
<--- Huge Horsepower
Re: Show us your Engine bay
Originally Posted by FP
Brian you've done a very nice job. It looks GREAT. How hard are the silver hose covers to put on?
I used electrical tape to secure the ends (they get covered by the hose clamps) but then switched to the metal foil tape I purchased when I wrapped my intercooler. Wear some mechanic gloves (but you'll still get poked a few times) I used a old set of Fisker scissors to cut the braid to size. Purchase some good hose clamps to replace the OEM squeeze type.
<--- Huge Horsepower
Re: Show us your Engine bay
I don't want to bore you with more of my engine bling, but I have one more modification.
Max (maxcichon) suggested a change for my intake covers, and I agreed with him. He's fabricated rounded covers for me. Take a look. I think Max did a fantastic job again.
Thanks Max.

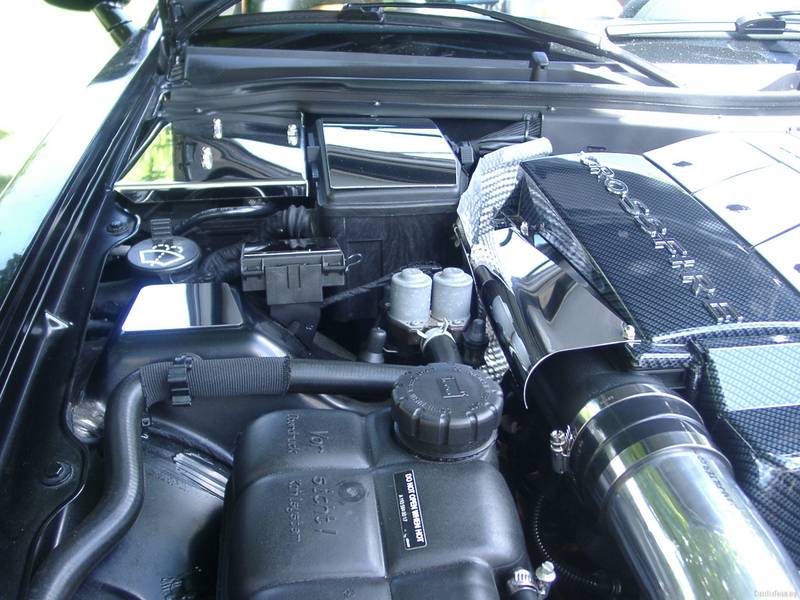

After

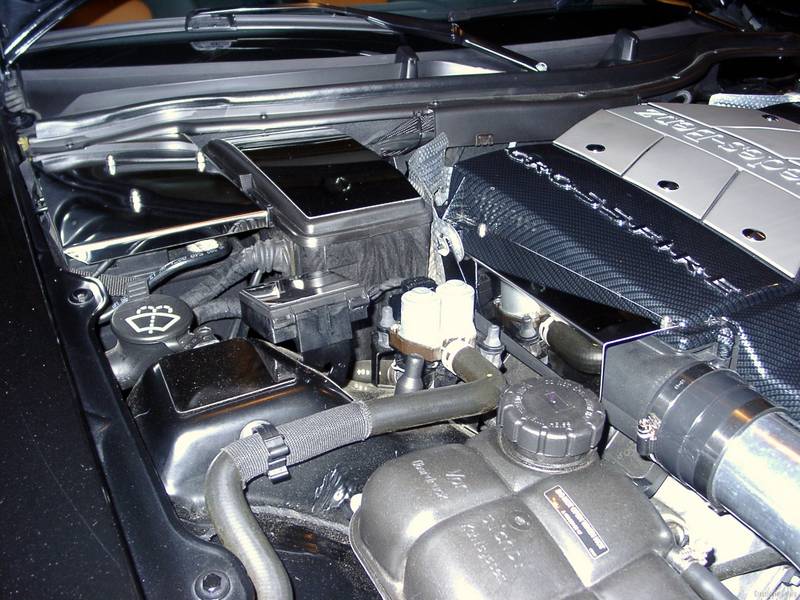

Before
Max (maxcichon) suggested a change for my intake covers, and I agreed with him. He's fabricated rounded covers for me. Take a look. I think Max did a fantastic job again.
Thanks Max.
After
Before
Last edited by FP; 06-21-2008 at 12:03 PM.
Re: Show us your Engine bay
Originally Posted by CrossfireLTD
Here is a picture of my engine bay, I have a few changes that will be made....will post new pics when done.
Does anyone else have a similar setup by a different manufacturer?
Join Date: Sep 2007
Location: MOFN, AL, 70 miles from George
Age: 66
Posts: 8,015
Likes: 0
Received 10 Likes
on
10 Posts
Re: Show us your Engine bay
Originally Posted by Steve Hellums

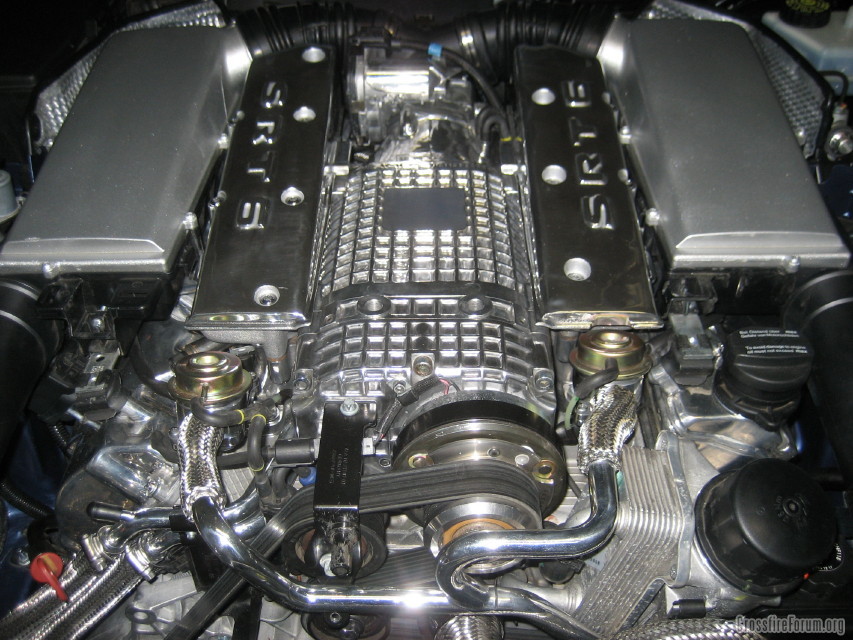

Here's mine, nothing real special except you don't see all the relay's & wiring that turns off fuse's 17 & 18, for the fans, HE temp gauge, wiring for the LED indicator lights or the seperate circuit to turn on the I/C pump.
Re: Show us your Engine bay
Originally Posted by Steve Hellums
Here's mine, nothing real special except you don't see all the relay's & wiring that turns off fuse's 17 & 18, for the fans, HE temp gauge, wiring for the LED indicator lights or the seperate circuit to turn on the I/C pump.
Join Date: Sep 2007
Location: MOFN, AL, 70 miles from George
Age: 66
Posts: 8,015
Likes: 0
Received 10 Likes
on
10 Posts
Re: Show us your Engine bay
You have to bend the negative battery cable DOWN 90 degrees to clear the edge of the cover. You don't want it to abrade through!
Lookin' good!
www.CustomCrossfire.com
Re: Show us your Engine bay
Originally Posted by BrianBrave
I'm inspired by psuperti's engine bay!! - Now l need to paint my airboxes and engine cover Aero Blue to match the Crossfire.
